TempScan is a complete system controller.
Up to 200 temperature inputs.
Control of up to 100 rooms/cabinets.
Control of up to 27 compressors and 12 condensers using pressure inputs.
Up to 5 systems/racks simultaneously.
Load shedding for efficient power usage.
Data logging of all parameters.
SCADA software for computer interface.

• Up to 200 temperature channels.
• Up to 15 pressure channels.
• One liquid level input channel.
• Up to 100 rooms/cabinets controlled.
• Up to 27 compressors, 12 condensers and 5 liquid pumps.
• Up to 5 bank/rack systems.
• Full defrost functions .
• Load shedding for efficient power usage.
• 4 temperature set points for 4 times of day for each channel for each day of the week.
• Use/Not use set points for different days of the week.
• Maximum channels on to even out refrigeration usage.
• Minimum channels on for no short cycling.
• Channel turn on delay for no short cycling.
• Data logging.
• Real time clock.
• SCADA software for computer communication.
• Alarms for all parameters.

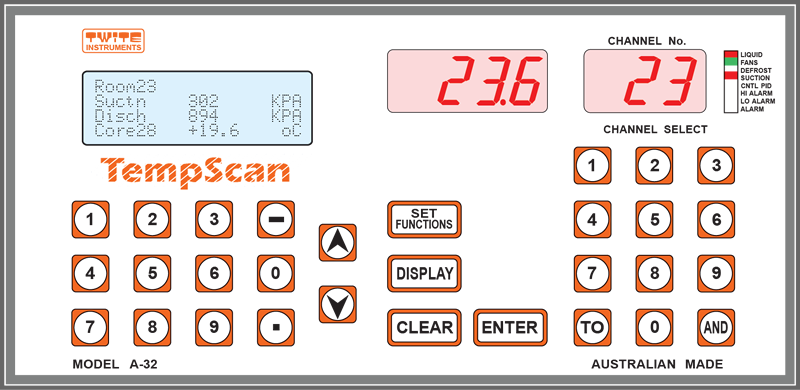

Front PanelDisplay:	Control Set Points:	Defrost Cycle:

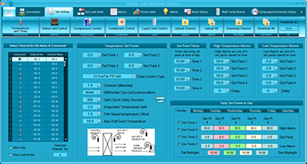

Connection Diagram:	SCADA Sample: OTHER SCADA Samples	Remote Board:
